While we marvel at the driving range and intelligent cockpits of new-energy vehicles, profound technological evolutions are taking place inside the vehicle’s ‘energy heart’—the traction battery pack.
Today’s protagonist is a precision component known as the BDU (Battery Disconnect Unit), the core power-distribution and safety hub of an electric vehicle’s high-voltage electrical system.
From early functional implementation to today’s intelligent integration, the evolution of the BDU is a miniature history of the progress of the new-energy vehicle industry.
And in this new chapter of technology, leading enterprises represented by LIGOO are redefining the technical boundaries of the BDU with innovative strokes.
This article will deeply analyze the technological evolution of the BDU and unveil the past and present of this ‘guardian’.
BDU—the ‘Intersection’ of the New-Energy Vehicle’s High-Voltage System
Before understanding the evolution of the BDU, one must first define its role. If the traction battery pack is compared to the vehicle’s ‘heart,’ then the ‘blood’ pumped from the heart—high-voltage electrical energy—requires a precise and robust ‘vascular system’ for distribution and management.
The BDU is precisely the master gate and dispatch center of this system.
It Has Three Core Functions:
Power distribution: distributing the high-voltage DC output from the pack’s total positive and total negative terminals, as required, to various high-voltage consumers such as the on-board charger (OBC), DC fast-charging port (DC/DC), and motor control unit (MCU).
Protection: achieving safe system power-on and power-off by precisely controlling the on/off sequence of the main positive relay, main negative relay, etc. (especially the pre-charge process, which prevents inrush current from shocking the controllers).
Connection and monitoring: serving as the centralized connection point for high-voltage wiring harnesses and working in coordination with the BMS master control board, monitoring total current and total voltage through sensors to provide critical data for the BMS to execute protection strategies.
In short, the BDU is the first physical line of defense for high-voltage safety and an intelligent switch matrix for energy flow.
The BDU’s ‘Past’: The Primary Stage of Discrete and Extensive Design
In the budding and demonstration-operation stage of new-energy vehicles, the form of the BDU was primitive and functional.
At this stage, it typically took the form of an independent metal or engineering-plastic enclosure, crudely housing several high-current relays, fuses, and copper busbars. The design was relatively extensive and the volume was large.
Core Characteristics:
Functional separation: the BDU, BMS master control, and current sensors (Hall sensors) were often independent modules connected by wiring harnesses. Low integration, large space occupation, and higher risk of connection-point failures.
Safety first: the primary design goal was to achieve basic high-voltage on/off and safety isolation, satisfying the most fundamental power-on, operation, and power-off flows.
Cost-reliability trade-off: early automotive high-voltage relays were costly, and their lifespan and reliability faced severe tests. BDU design struggled to balance cost control against ensuring basic functionality.
The BDU of this stage was a ‘pioneer’ on the road of electrification exploration, solving the problem of going from nothing to something. It proved the feasibility of the high-voltage electrical architecture and laid the most primitive cornerstone for subsequent evolution, yet its efficiency, integration, and intelligence were all at a primary stage.
The BDU’s ‘Present’: Integration, Intelligence, and Platformization—LIGOO’s BMS-Integrated BDU Is Highly Representative
As electric vehicles entered the stage of mass production and market explosion, the ultimate pursuit of range, cost, safety, and space utilization thoroughly reshaped the BDU.
In this domain, leveraging its profound mastery of BMS, LIGOO has reshaped the technical connotation of the BDU, and—through continuous exploration and refinement—rapidly completed a technical leap from a ‘discrete box’ to an ‘integrated brain.’ Its self-developed BMS-integrated BDU is highly representative.
A shift in design philosophy from ‘function realization’ to ‘system optimization’: BDU design is incorporated into the overall consideration of the entire battery pack and even the vehicle’s electrical architecture.
LIGOO’s BDU emphasizes collaborative design capability with the battery pack and the vehicle domain controller (VDC), pursuing system-level higher energy efficiency and ultimate reliability through optimized internal structure, improved thermal design and simulation capability, and full electronicization of all components.
Platformization and standardization: to address diversified vehicle-model demands, LIGOO has developed a modular, scalable CBB technology platform that can be flexibly configured according to project needs, rapidly adapting to different voltage platforms and power requirements and spawning series products.
Higher integration, smaller volume: LIGOO’s BDU achieves deep integration and deeply optimizes material processes, component configuration, and platform-based development and production, saving a large amount of wiring harnesses and connectors, simplifying the internal structure of the PACK, reducing volume by over 50%, improving reliability, and significantly lowering deployment costs.

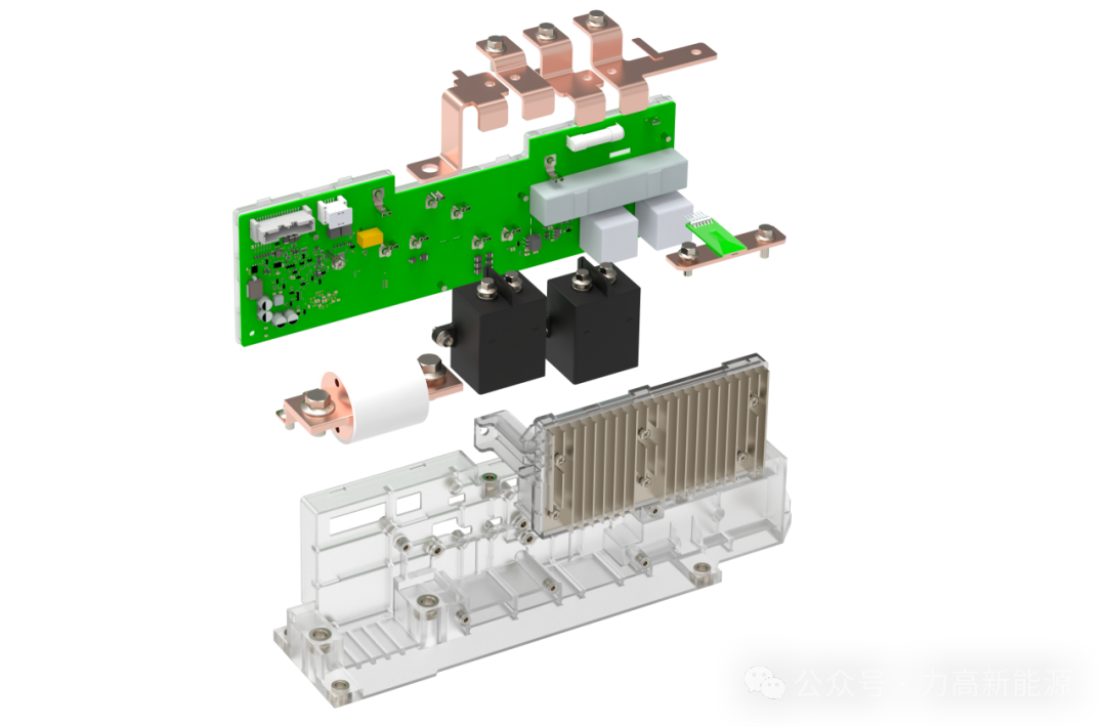

Fully automated production line: LIGOO’s self-developed BMS-integrated BDU has achieved a zero-harness, zero-bolt design, requiring no manual wiring and enabling fully automated production.
Compared with the manual wiring of traditional BDUs, LIGOO’s automated production line not only greatly improves efficiency but also further ensures product quality.
LIGOO’s BMS-integrated BDU has evolved into a highly integrated, intelligently controllable, platform-designed key subsystem—an important link in the evolution of the vehicle’s electrical/electronic architecture toward domain control.
The Future Is Here: A Forward Look at the BDU’s ‘Future’
The wave of technology rolls forward, and BDU evolution continues. With its profound professional foundation and innovative momentum, LIGOO has extended the forward-looking vision of BDU technology even further into the future.
Deeper ‘domain fusion’: under the vehicle architecture of ‘central computing + zonal control,’ the BDU further fuses with the zonal controller (ZCU) or power domain controller (VDC), becoming a zonal intelligent node that executes high-voltage power-distribution functions.
Higher-voltage platforms: LIGOO’s BDU can adapt to various voltage platforms such as 350V, 500V, and 800V. As high-voltage fast-charging platforms become widespread, all components inside the BDU (relays, fuses, harness connectors) require higher voltage-withstanding grades and stricter insulation design, raising the technical threshold once again.
Full-lifecycle management: through AI algorithms, deeply analyze data such as contact resistance and temperature of internal BDU relays to achieve fault prediction and maintenance reminders, moving from ‘passive protection’ to ‘active management’.
Conclusion
From extensive to precise, from discrete to fused, from the original single-function ‘high-voltage switch box’ to today’s integrated ‘intelligent power-distribution hub,’ the BDU defines safety and efficiency in silence.
On this path of technological leap, LIGOO—anchored on the profound technical accumulation of being ‘No. 1 in professional BMS’—has strategically expanded upward, starting from the ‘brain’ (BMS) to reversely reconstruct the ‘hands’ (BDU), demonstrating a distinctly different technical path, achieving a ‘corner overtaking,’ and consolidating the cornerstone of new-energy vehicle safety, energy efficiency, and reliability.
