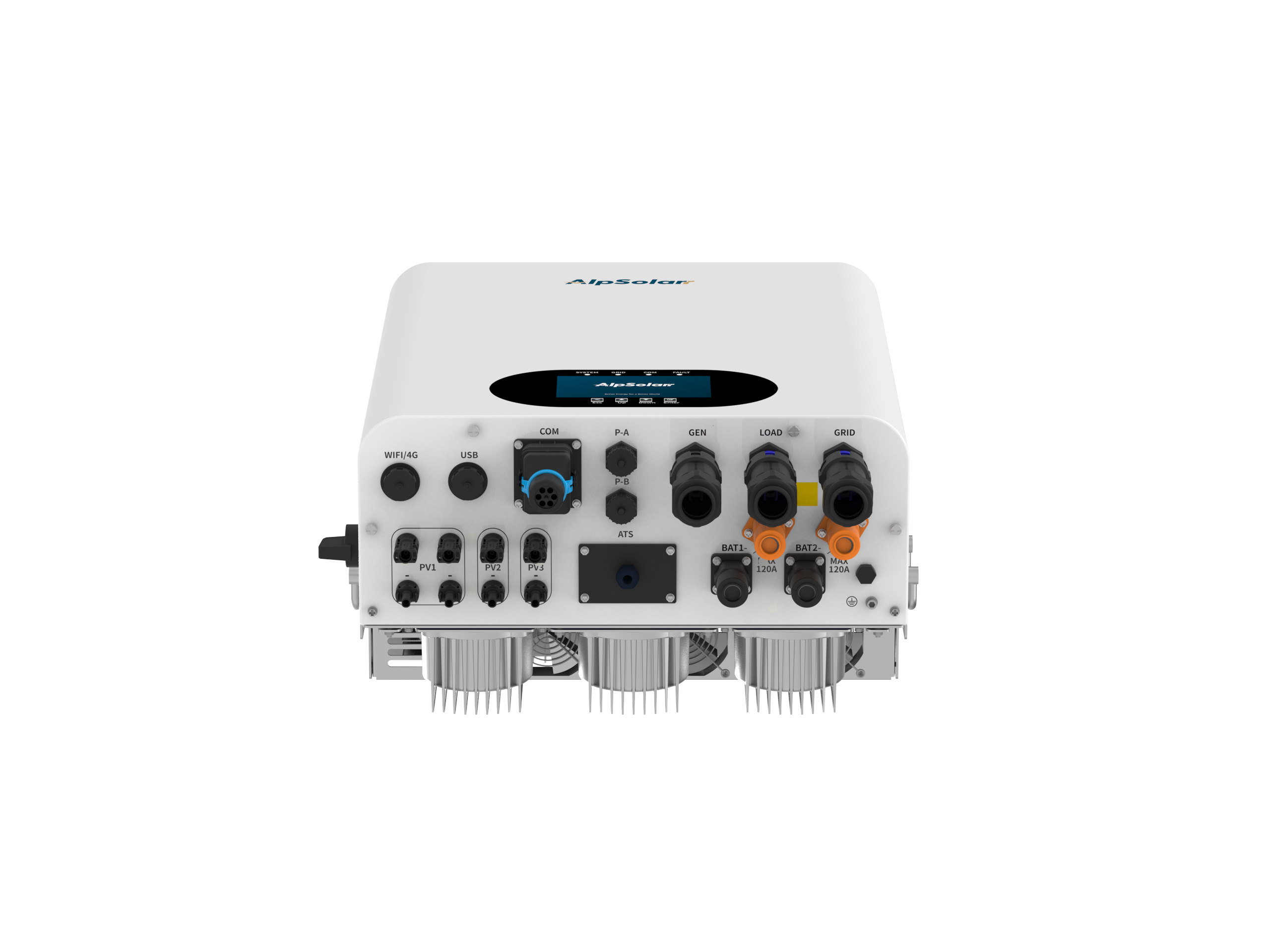

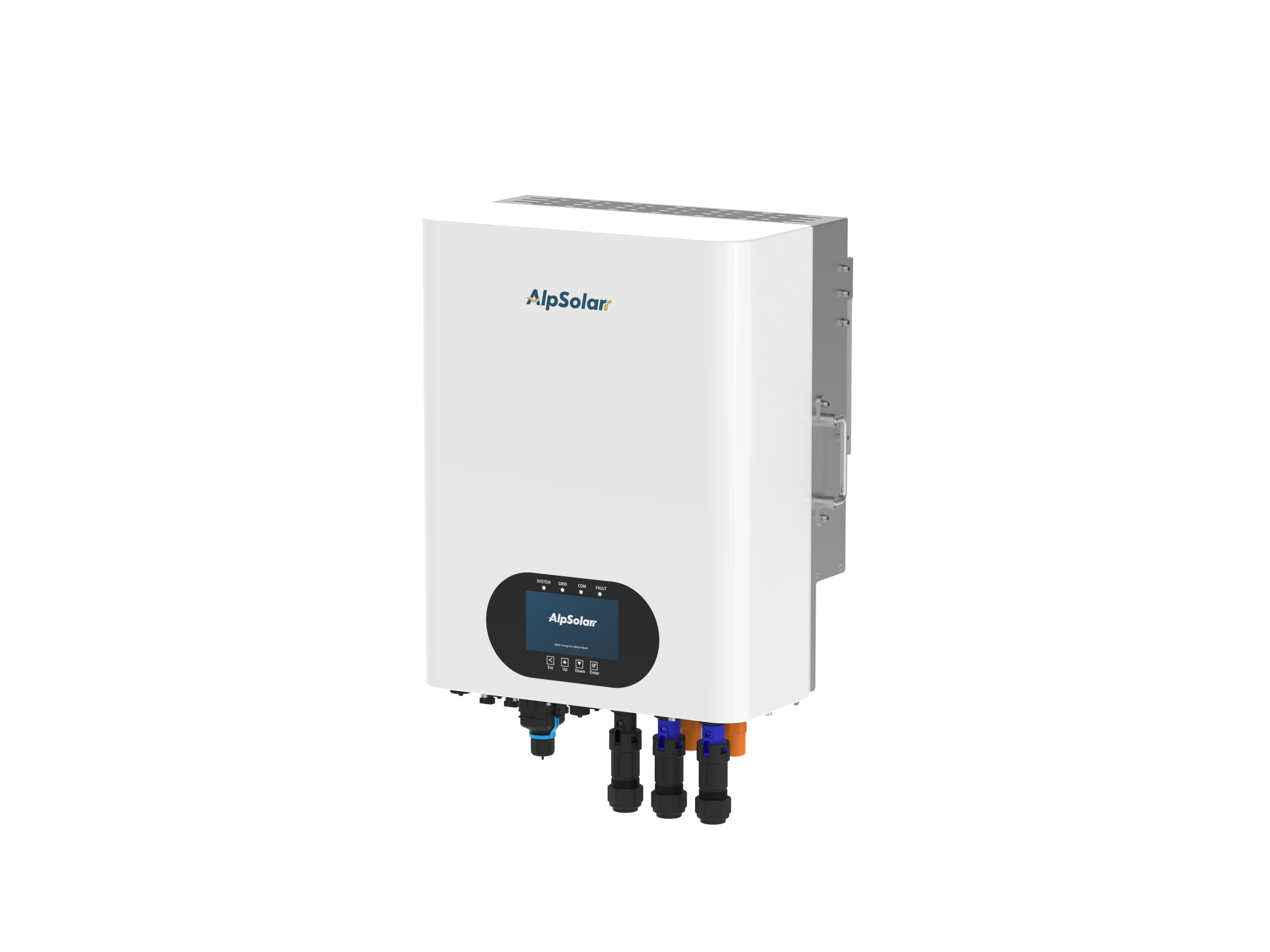

Single Phase Hybrid Inverter
230A Charge | 2x Overload | IP66 | Parallel
| Model | 8kW | 10kW | 12kW |
|---|---|---|---|
| Battery Parameters | |||
| Battery Type | Lithium battery & lead-acid battery | ||
| Rated Battery Voltage (Vdc) | 48 | ||
| Battery Voltage Range (Vdc) | 40~60 | ||
| Max Charge/Discharge Current (A) | 180/180 | 200/200 | 230/230 |
| PV Forced Wake-up | Supported | ||
| PV Input | |||
| Max Input Power (W) | 12000 | 15000 | 18000 |
| Max Input Voltage (Vdc) | 500 | ||
| Rated Input Voltage (Vdc) | 370 | ||
| Start-up Voltage (Vdc) | 100 | ||
| MPPT Voltage Range (Vdc) | 100~425 | ||
| Number of MPPTs / Strings per MPPT | 3/2+1+1 | ||
| Max Input Current per MPPT (A) | 28/16/16 | ||
| Max Short-Circuit Current per MPPT (A) | 44/25/25 | ||
| Grid Input & Output | |||
| Rated Grid Voltage (Vac) | L/N/PE, 230 | ||
| Rated Grid Frequency (Hz) | 50 | ||
| Rated Grid Connection Power (W) | 8000 | 10000 | 12000 |
| Rated Grid Connection Current (A) | 34.8 | 43.5 | 52.2 |
| Max Grid Connection Apparent Power (VA) | 8800 | 11000 | 13200 |
| Max Grid Connection Current (A) | 40 | 50 | 60 |
| Max Input Apparent Power (VA) | 12000 | 15000 | 18000 |
| Max Input Current (A) | 52.2 | 65.2 | 78.3 |
| Total Current Harmonic Distortion (THDi) | <3% | ||
| Power Factor | 0.8 leading ~ 0.8 lagging | ||
| Load Parameters | |||
| Rated Output Power (W) | 8000 | 10000 | 12000 |
| Rated Output Current (A) | 34.8 | 43.5 | 52.2 |
| Rated Output Frequency (Hz) | 50 | ||
| Overload Capability | 110% continuous; 200% for 10s | ||
| Transfer Time (ms) | <10 | ||
| Total Voltage Harmonic Distortion (THDv) | <3% | ||
| Efficiency | |||
| Max Efficiency | 97.8% | ||
| European Efficiency | 96.5% | ||
| MPPT Efficiency | 99.9% | ||
| Matching Diesel Generator/Grid Parameters — Slow Charging Port | |||
| General | PV reverse polarity protection, insulation impedance detection, ground fault detection, overcurrent protection, overvoltage protection | ||
| Surge Protection | DC Protection Class II / AC Protection Class II | ||
| Overvoltage Protection | DC Protection Class II / AC Protection Class III | ||
| AFCI | Optional | ||
| General Parameters | |||
| Operating Temperature (℃) | -25 to +60 (derating above 45°C) | ||
| Dimensions [W×H×D] (mm) | 450*570*268 | ||
| Weight (kg) | 39 | ||
| Inverter Topology | Non-isolated | ||
| Cooling Method | Smart cooling | ||
| Altitude (m) | ≤3000 | ||
| IP Rating | IP66 | ||
| Communication Method | RS485, Wi-Fi /GPRS, CAN2.0 | ||
| Warranty | 5 years (standard) / 10 years (optional) | ||
| Maximum Parallel Units | 6 | ||
| Certification Standards | |||
| Grid-Connection Standards | VDE-AR-N 4105, VDE V 0126-1-1, CEI 0-21, G98/G99, EN 50438/EN50549, NRS 097 | ||
| Safety Standards | IEC/EN 62109-1, IEC/EN 62109-2 | ||
| EMC Standards | EN 61000-6-1:2019, EN IEC 61000-6-3:2021, EN 61000-3-12:2011, EN IEC 61000-3-11:2019 | ||
