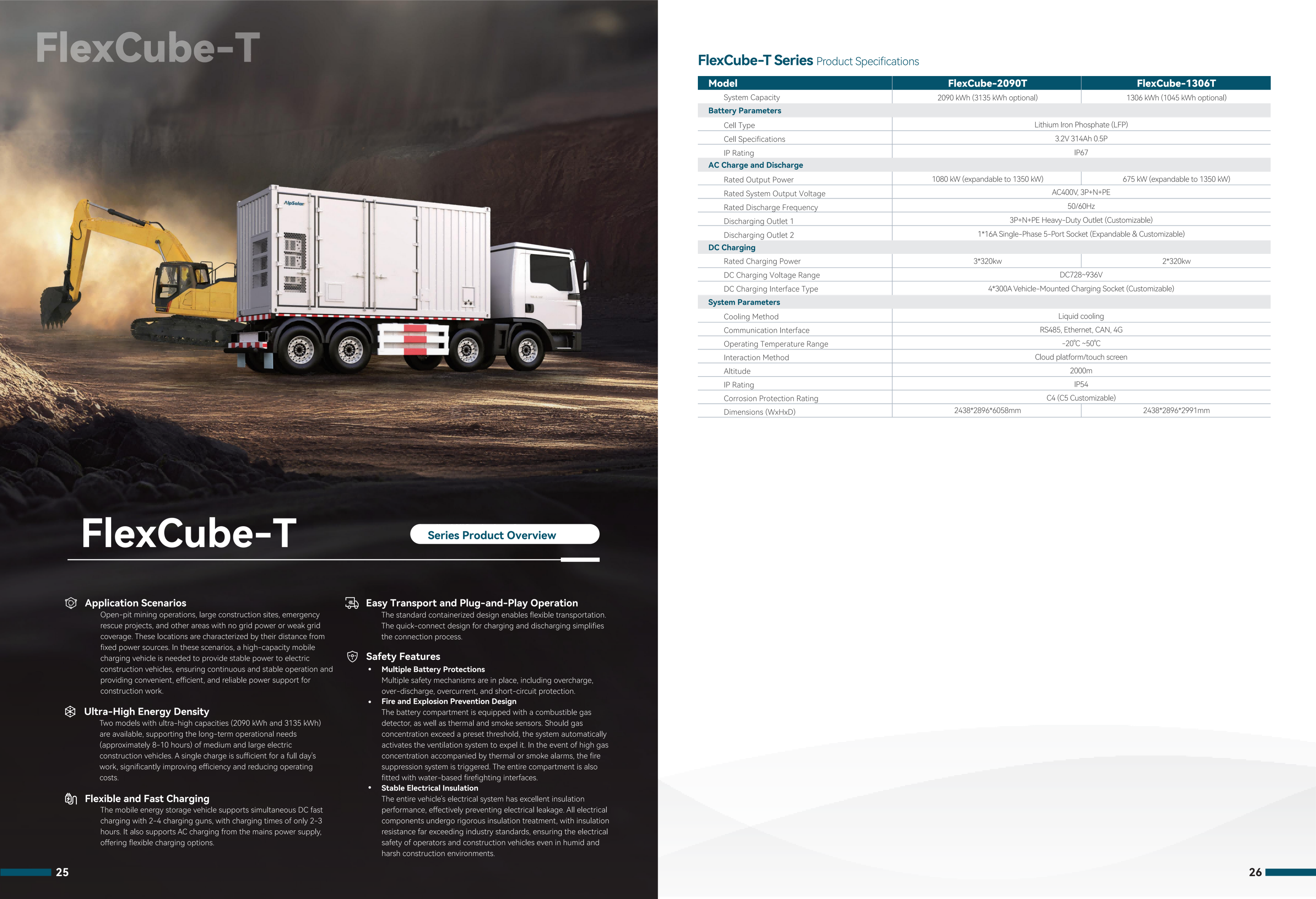

FlexCube T

Mobile Energy Storage System

Application Scenarios

Open-pit mining operations, large construction sites, emergency rescue projects, and other areas with no grid power or weak grid coverage. These locations are characterized by their distance from fixed power sources.

Ultra-High Energy Density

Two models with ultra-high capacities (2090 kWh and 3135 kWh) are available, supporting the long-term operational needs (approximately 8-10 hours) of medium and large electric construction vehicles. A single charge is sufficient for a full day’s work, significantly improving efficiency and reducing operating costs.

Flexible and Fast Charging

The mobile energy storage vehicle supports simultaneous DC fast charging with 2-4 charging guns, with charging times of only 2-3 hours. It also supports AC charging from the mains power supply, offering flexible charging options.

Easy Transport and Plug-and-Play Operation

The standard containerized design enables flexible transportation. The quick-connect design for charging and discharging simplifies the connection process.

Safety Features

Multiple safety mechanisms are in place, including overcharge, over-discharge, overcurrent, and short-circuit protection.

Fire and Explosion Prevention Design: The battery compartment is equipped with a combustible gas detector, as well as thermal and smoke sensors. Should gas concentration exceed a preset threshold, the system automatically activates the ventilation system to expel it. In the event of high gas concentration accompanied by thermal or smoke alarms, the fire suppression system is triggered. The entire compartment is also fitted with water-based firefighting interfaces.

Stable Electrical Insulation: The entire vehicle’s electrical system has excellent insulation performance, effectively preventing electrical leakage.
