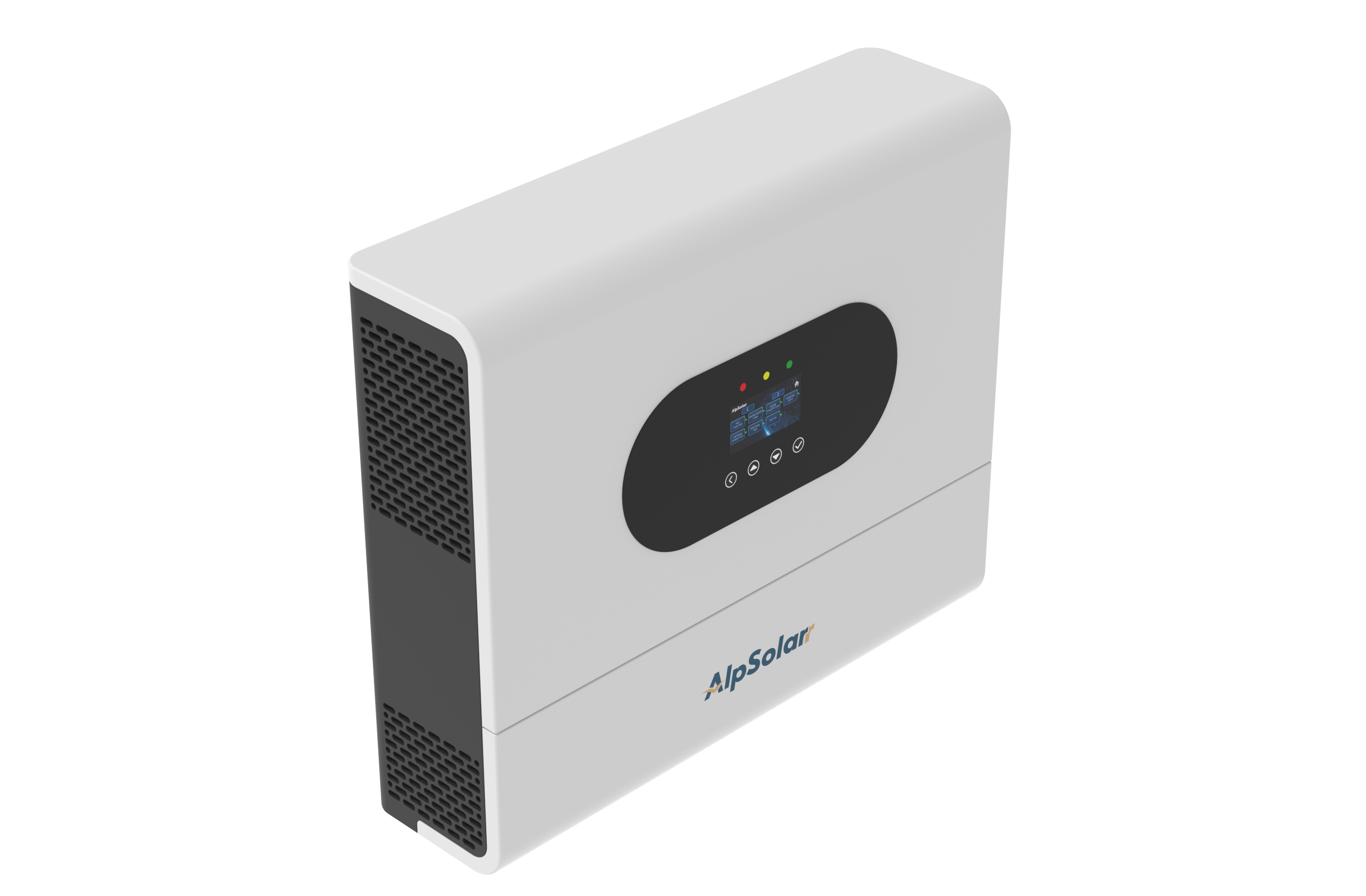

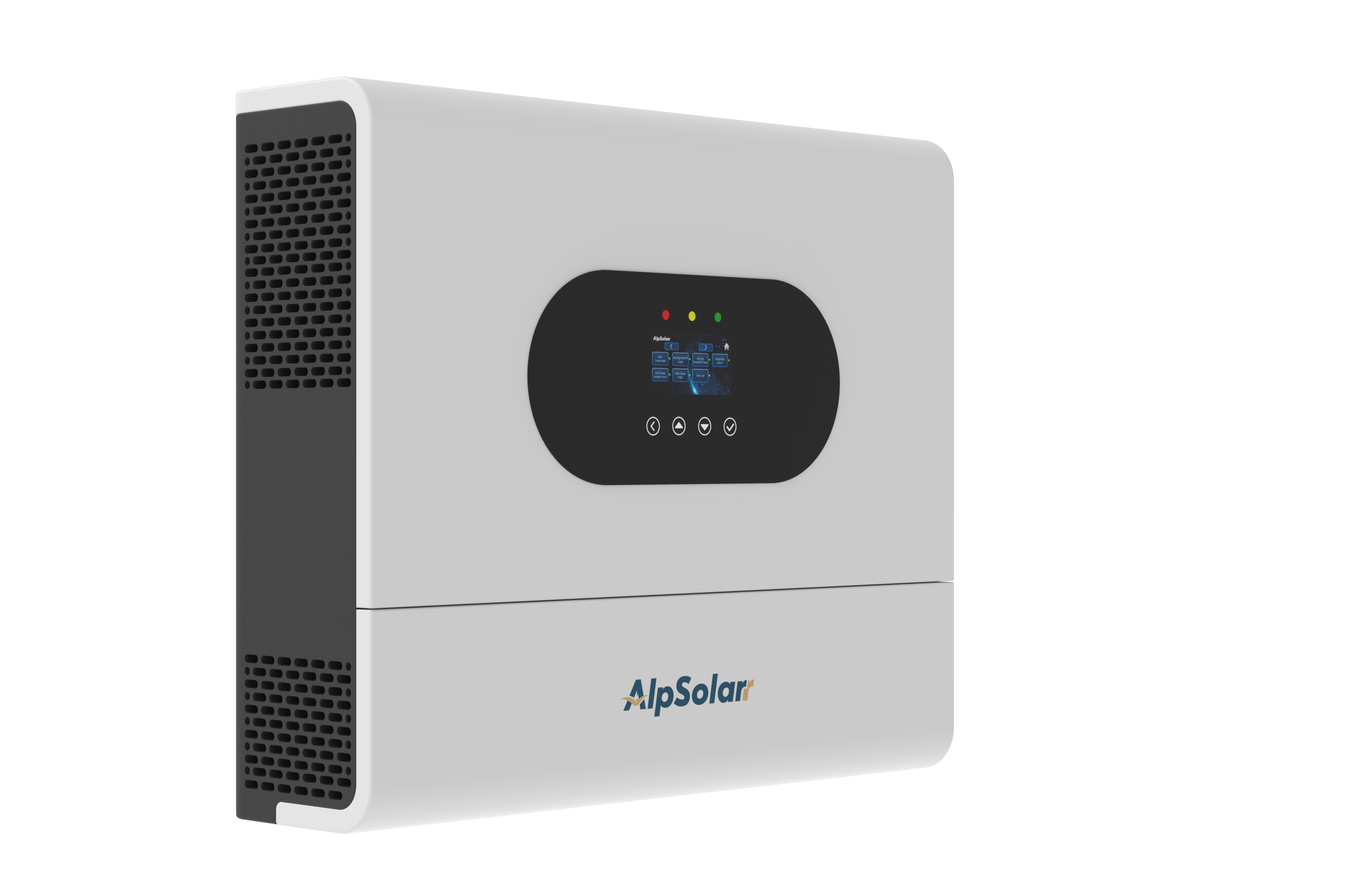

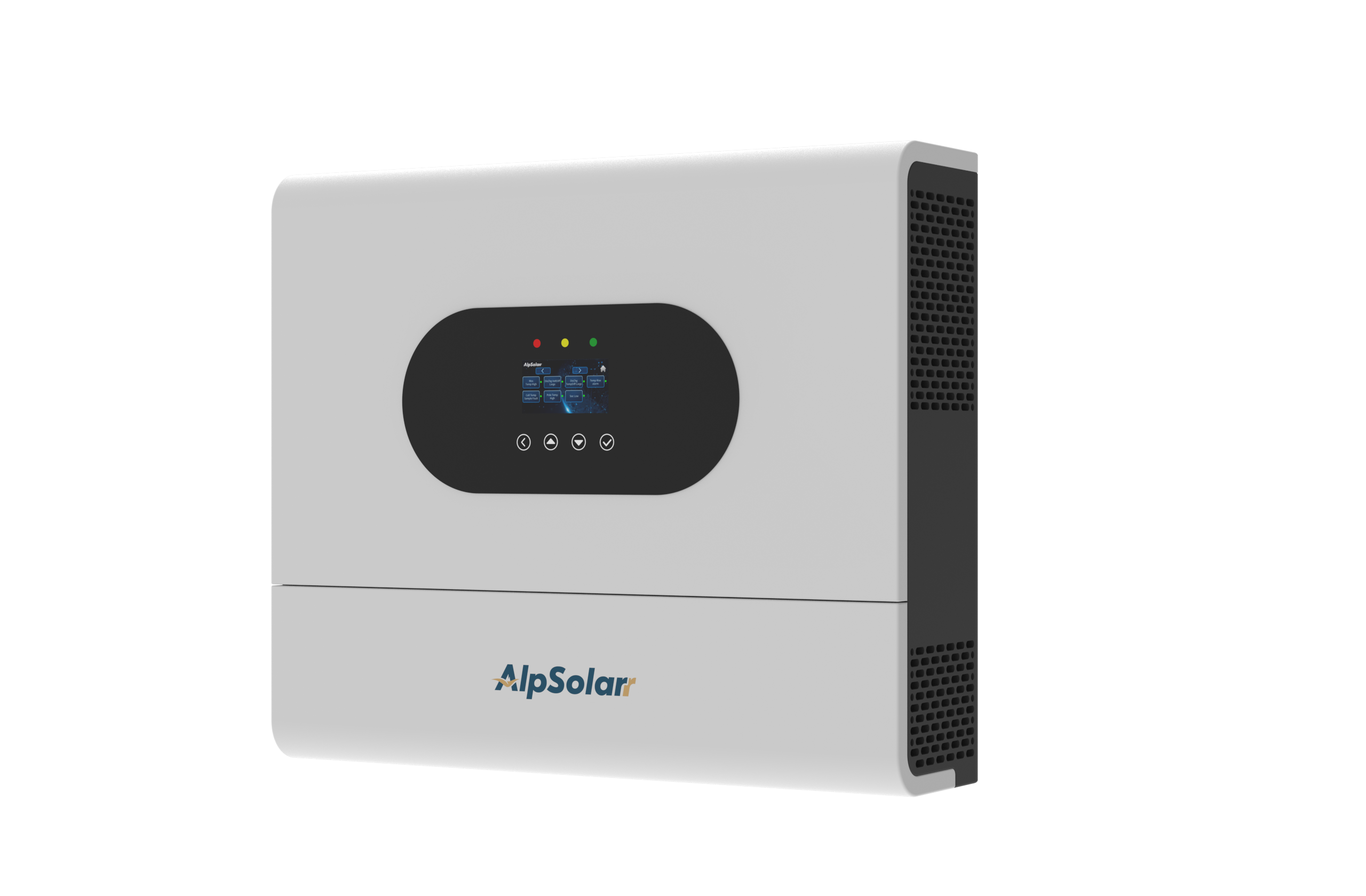

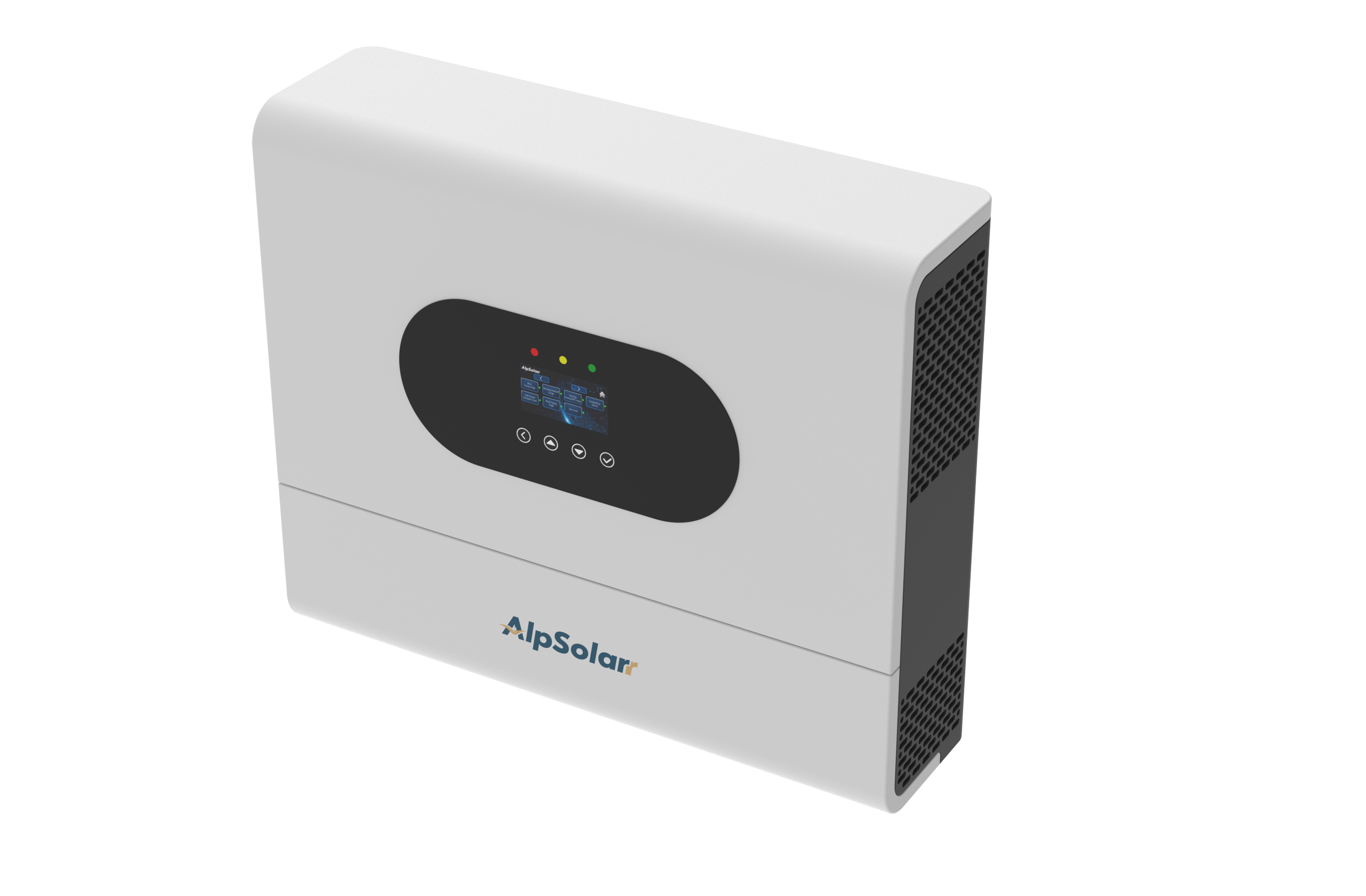

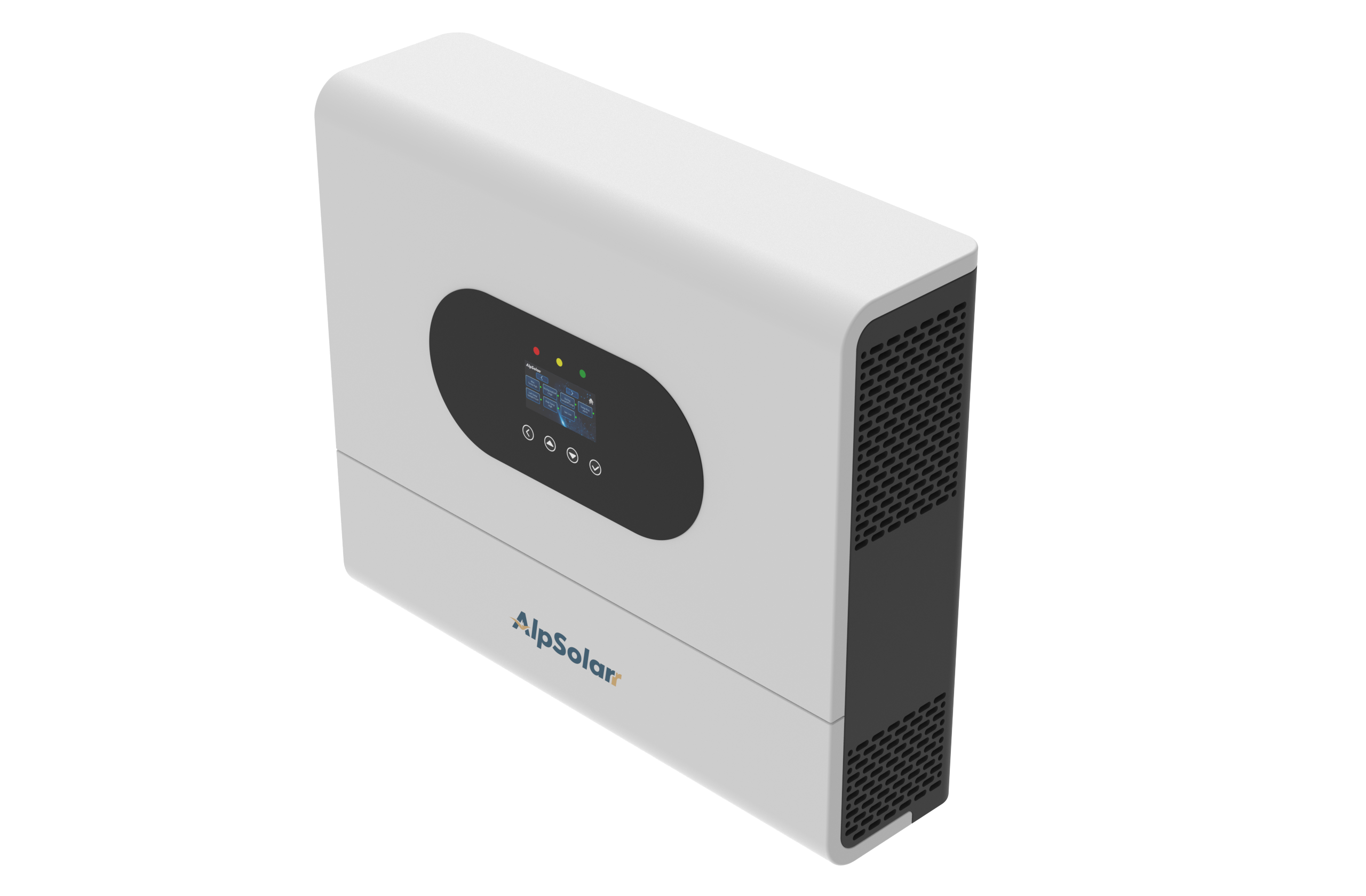

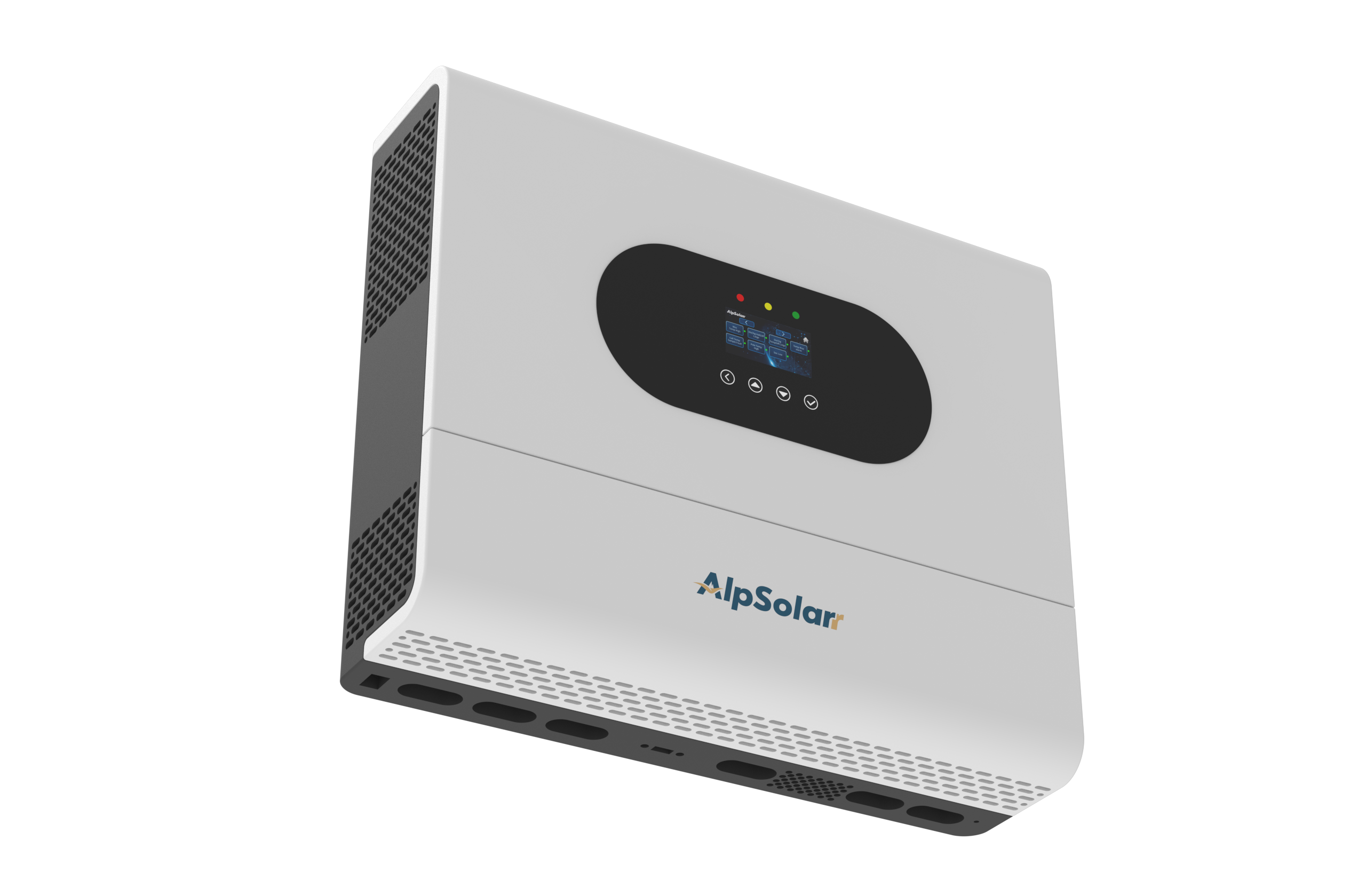

Hybrid Solar Inverter
| Model | PULSE K1-8K | PULSE K1-10K | PULSE K1-12K |
|---|---|---|---|
| AC Output （Off Grid） | |||
| Rated Power | 8kW/8kVA | 10kW/10kVA | 12kW/12kVA |
| Surge Power | 16kW/16kVA | 20kW/20kVA | 24kW/24kVA |
| AC Output Voltage | Single Phase: 100V/110V/120V/127V 、 Split Phase: 120V/240V 2/3 Phase: 127V/220V 、 Parallel Mode Three-Phase: 120V/208V | ||
| Rated AC Output Frequency | 50Hz / 60Hz (Auto detection) | ||
| Max Inverter Efficiency | 96.5%（PV/AC） | ||
| Transfer Time | <10ms@Single,<20ms@ Parallel | ||
| Output Waveform | Pure Sine Wave | ||
| No-Load Loss | ≤75W@Rate Voltage | ||
| AC Output （On Grid） | |||
| Rated Power | 8kW/8kVA | 10kW/10kVA | 12kW/12kVA |
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Rated Voltage | Single Phase: 100V/110V/120V/127V 、 Split Phase: 120V/240V 、 2/3 Phase: 127V/220V 、 Parallel Mode Three-Phase: 120V/208V | ||
| Rated Grid Frequency | 50Hz/60Hz（Auto detection） | ||
| Max Output Current | 34A(Split Phase) 67A(Single Phase) | 42A(Split Phase) 84A(Single Phase) | 50A(Split Phase) 100A (Single Phase) |
| PV Input | |||
| Number Of MPPT Trackers | 2 | ||
| Max PV Input power | 8000W*2 | 10000W*2 | 12000W*2 |
| Max PV Array Open Circuit Voltage | 550Vdc | ||
| Max PV Input Current | 27A*2 | ||
| Startup Voltage | 75Vdc | ||
| MPPT Voltage Range | 65~500Vdc | ||
| MPP tracking efficiency | 99.9% | ||
| Battery | |||
| Compatible Battery Types | Lead-acid、Lithium battery | ||
| Rated Battery Voltage | 48V/51.2V | ||
| Battery Voltage Range | 38.4Vdc~60Vdc | ||
| Cold Start Battery Voltage | 46Vdc | ||
| Max Solar Charging Current | 190A | 210A | 210A |
| Max AC Charging Current | 190A | 210A | 250A |
| Max Charging Current (PV+AC) | 190A | 210A | 250A |
| Activate The Lithium Battery Function | PV/AC | ||
| Protection | |||
| Over Current/Voltage Protection; Anti-islanding Protection; AC Short-Circuit Protection; Leakage Current Protection; Grid Monitoring; Ground Fault Monitoring; DC Surge Protection OVC II; AC Surge Protection OVC III | |||
| Mechanical Specifications | |||
| Inverter Dimensions | 541*518.7*141.2mm | ||
| Net Weight | 19.3kg | 19.4kg | 19.6kg |
| Gross Weight | 22.3kg | 22.4kg | 22.6kg |
| Environment | |||
| Protection Degree | IP20 | ||
| Humidity | 5%~95% non-condensing | ||
| Altitude | <2000 Meters | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -15℃~60℃ | ||
| Noise | <75dB | ||
| Certificate | UL 1741、FCC | ||
| Model | PULSE K1-8K | PULSE K1-10K | PULSE K1-12K |
|---|---|---|---|
| AC Output （Off Grid） | |||
| Rated Power | 8kW/8kVA | 10kW/10kVA | 12kW/12kVA |
| Surge Power | 16kW/16kVA | 20kW/20kVA | 24kW/24kVA |
| AC Output Voltage | Single Phase: 100V/110V/120V/127V 、 Split Phase: 120V/240V 2/3 Phase: 127V/220V 、 Parallel Mode Three-Phase: 120V/208V | ||
| Rated AC Output Frequency | 50Hz / 60Hz (Auto detection) | ||
| Max Inverter Efficiency | 96.5%（PV/AC） | ||
| Transfer Time | <10ms@Single,<20ms@ Parallel | ||
| Output Waveform | Pure Sine Wave | ||
| No-Load Loss | ≤75W@Rate Voltage | ||
| AC Output （On Grid） | |||
| Rated Power | 8kW/8kVA | 10kW/10kVA | 12kW/12kVA |
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Rated Voltage | Single Phase: 100V/110V/120V/127V 、 Split Phase: 120V/240V 、 2/3 Phase: 127V/220V 、 Parallel Mode Three-Phase: 120V/208V | ||
| Rated Grid Frequency | 50Hz/60Hz（Auto detection） | ||
| Max Output Current | 34A(Split Phase) 67A(Single Phase) | 42A(Split Phase) 84A(Single Phase) | 50A(Split Phase) 100A (Single Phase) |
| PV Input | |||
| Number Of MPPT Trackers | 2 | ||
| Max PV Input power | 8000W*2 | 10000W*2 | 12000W*2 |
| Max PV Array Open Circuit Voltage | 550Vdc | ||
| Max PV Input Current | 27A*2 | ||
| Startup Voltage | 75Vdc | ||
| MPPT Voltage Range | 65~500Vdc | ||
| MPP tracking efficiency | 99.9% | ||
| Battery | |||
| Compatible Battery Types | Lead-acid、Lithium battery | ||
| Rated Battery Voltage | 48V/51.2V | ||
| Battery Voltage Range | 38.4Vdc~60Vdc | ||
| Cold Start Battery Voltage | 46Vdc | ||
| Max Solar Charging Current | 190A | 210A | 210A |
| Max AC Charging Current | 190A | 210A | 250A |
| Max Charging Current (PV+AC) | 190A | 210A | 250A |
| Activate The Lithium Battery Function | PV/AC | ||
| Protection | |||
| Over Current/Voltage Protection; Anti-islanding Protection; AC Short-Circuit Protection; Leakage Current Protection; Grid Monitoring; Ground Fault Monitoring; DC Surge Protection OVC II; AC Surge Protection OVC III | |||
| Mechanical Specifications | |||
| Inverter Dimensions | 541*518.7*141.2mm | ||
| Net Weight | 19.3kg | 19.4kg | 19.6kg |
| Gross Weight | 22.3kg | 22.4kg | 22.6kg |
| Environment | |||
| Protection Degree | IP20 | ||
| Humidity | 5%~95% non-condensing | ||
| Altitude | <2000 Meters | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -15℃~60℃ | ||
| Noise | <75dB | ||
| Certificate | UL 1741、FCC | ||
