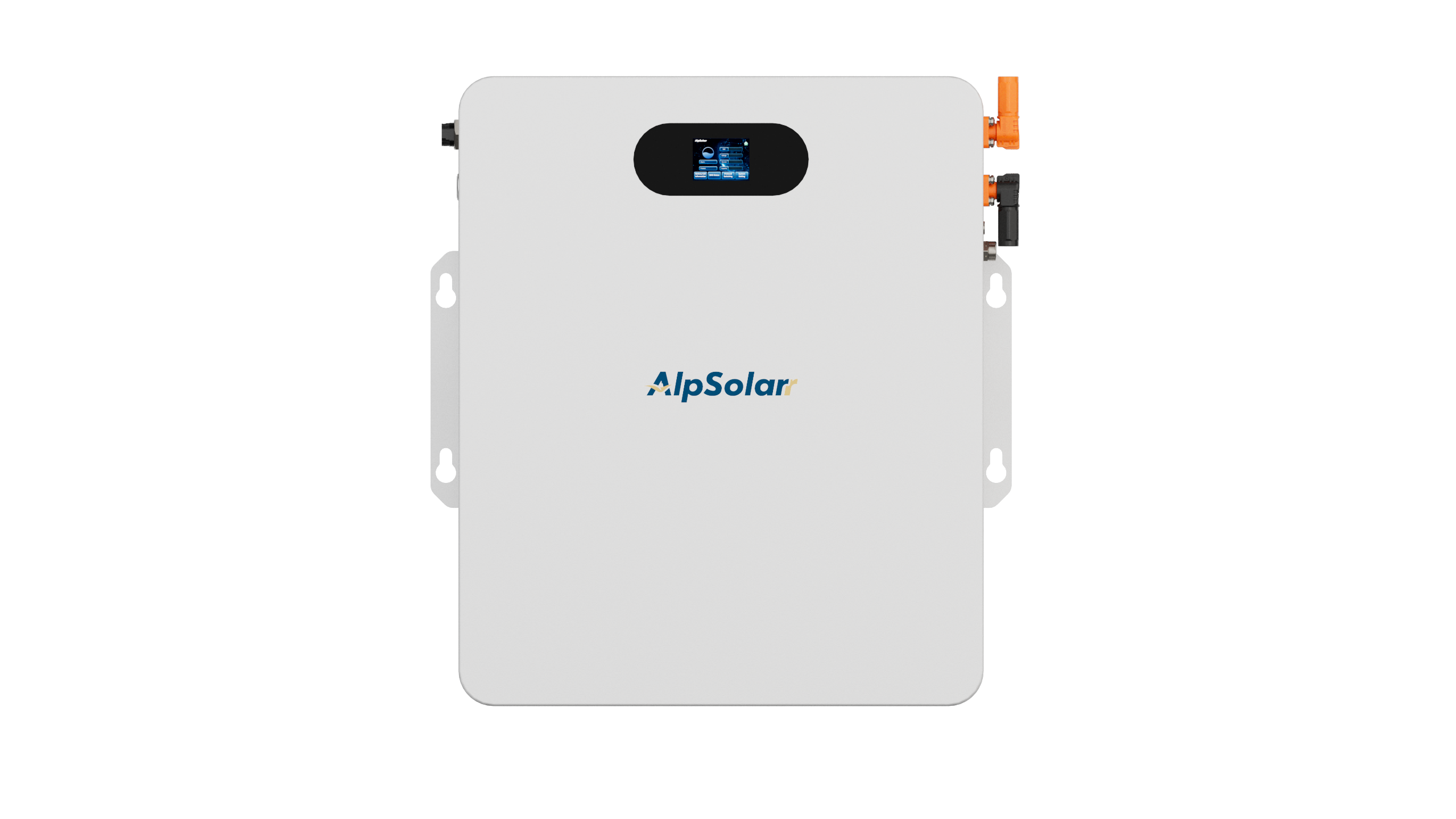

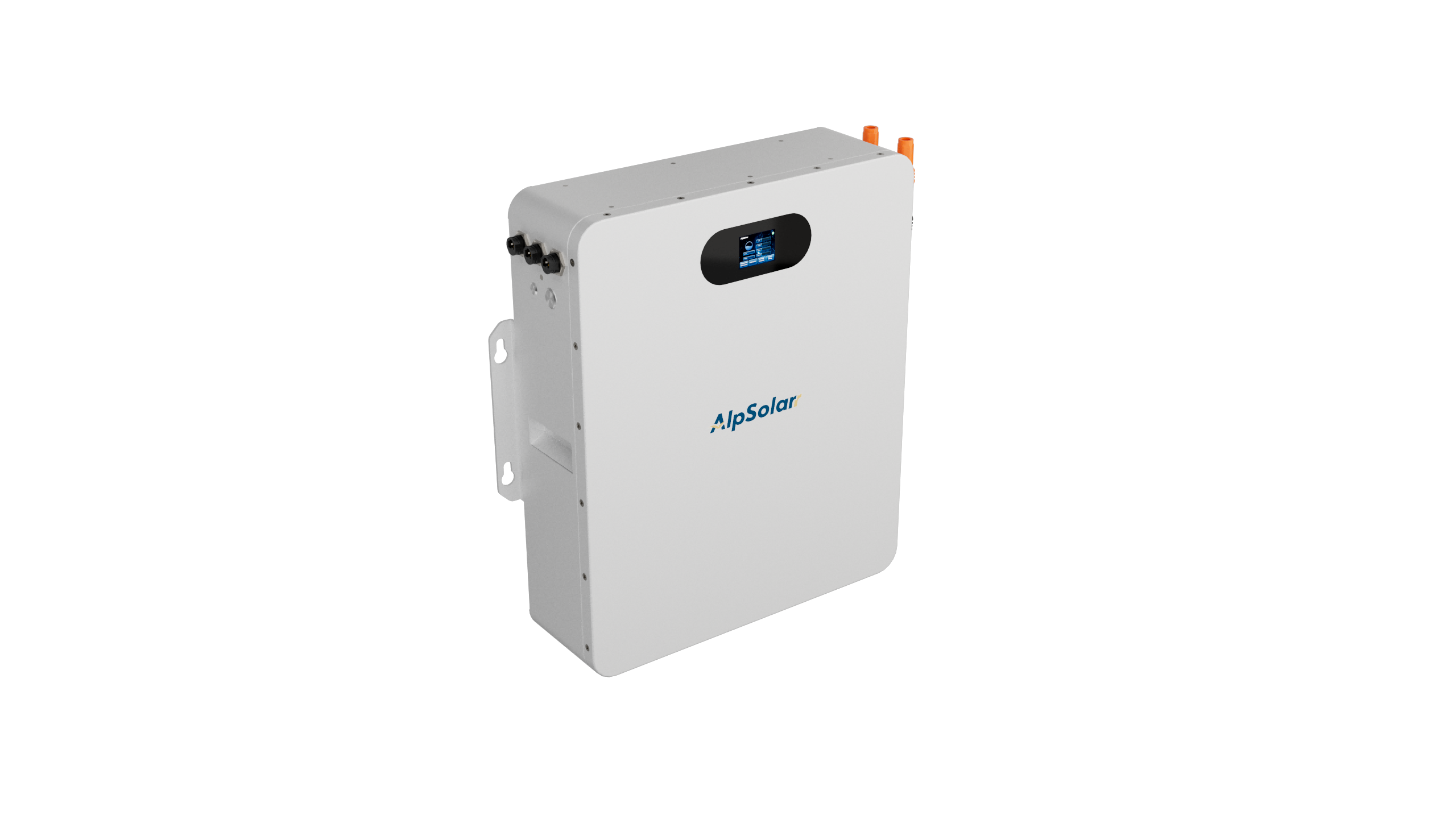

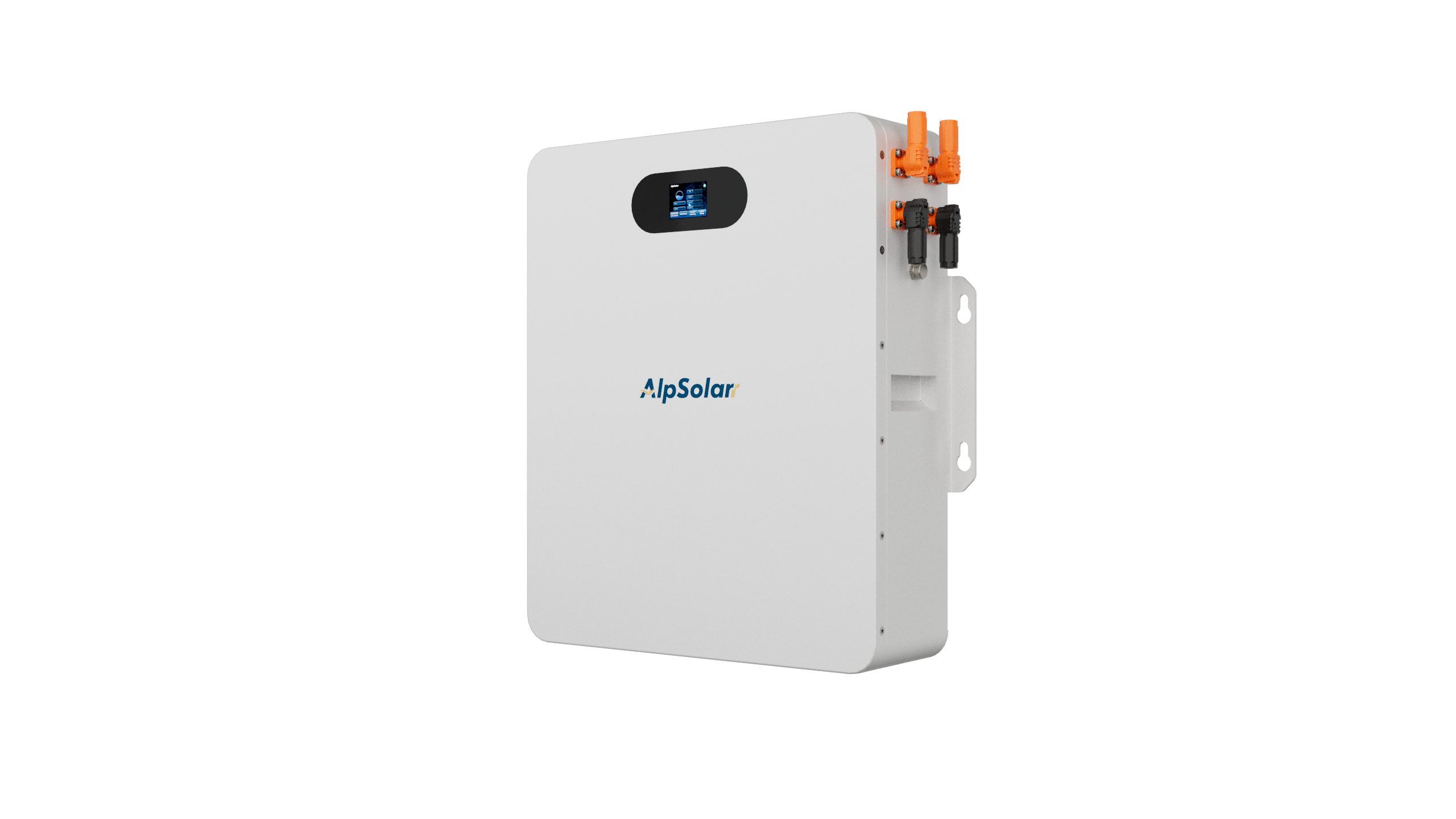

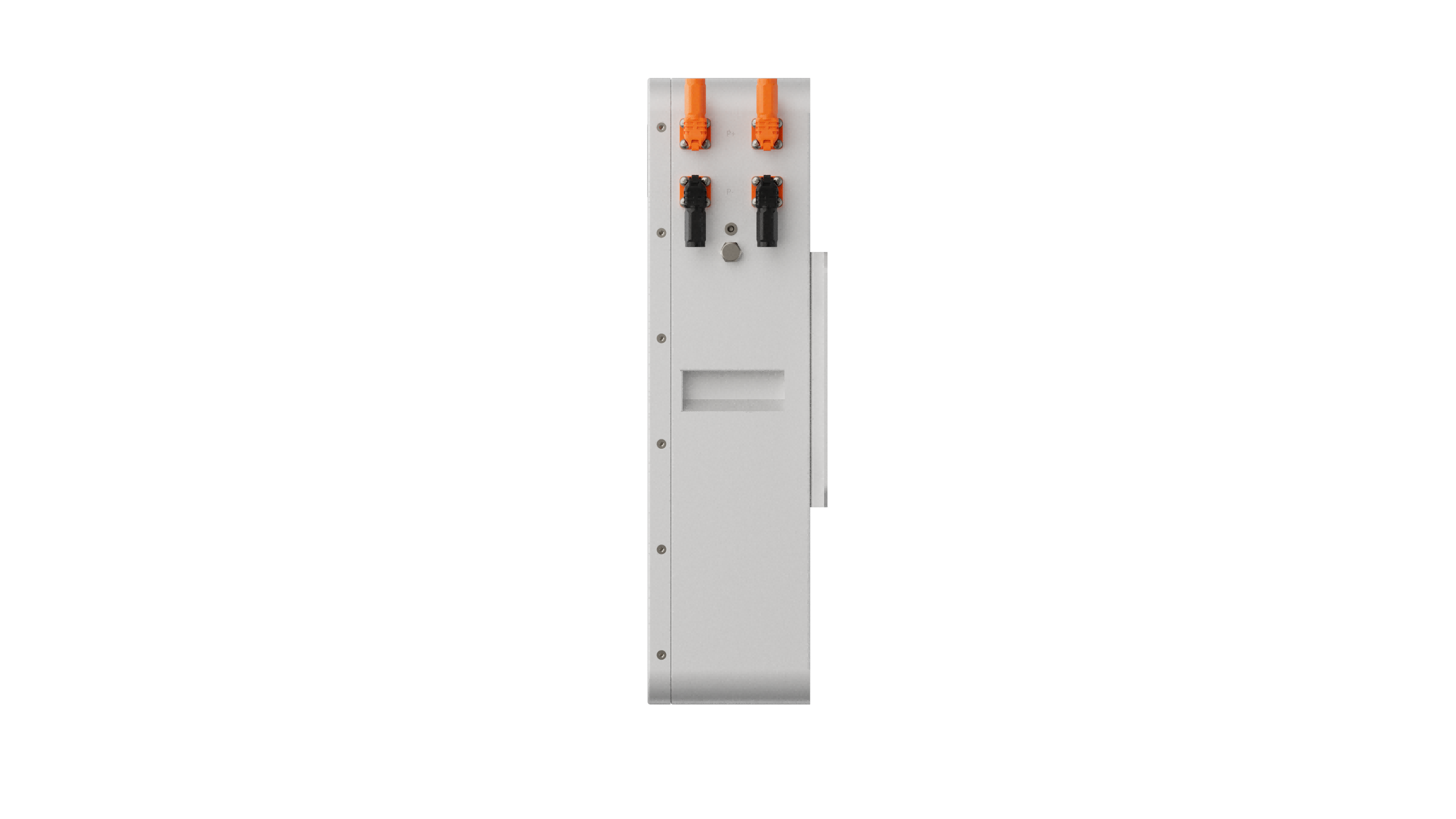

LIVO-Y

Low Voltage Battery System

LFP | IP65 | 5.12kWh | Wall-Mounted

Intelligent control with dual safety protection
Wide temperature range operation all-weather adaptability to high and low temperatures
Wall-mounted design for efficient space utilization
Multiple units in parallel for flexible capacity expansion

Product Details

Performance
Battery Type	Lithium Iron Phosphate
Rated Energy (kWh)	5.12
Rated Voltage (Vdc)	51.2
Rated Capacity (Ah)	100(1C)
Rated Charge Current (A)	50
Rated Discharge Current (A)	50
Max. Continuous Charge Current (A)	100
Max. Continuous Discharge Current (A)	100
Communication	RS485 / CAN2.0
Display	LED Light Panel/Display Screen(Optional)
Cycle Life	6000 cycles (@90%DOD 70%SOH)
Protection	Double Safety Control [Bms, Circuit Protection], Over-Temperature Protection, Over-Current Protection, Short-Circuit Protection, Over-Charge Protection, Over-Discharge Protection
Parallel Connection	up to 16 Units
Warranty	5 Years (Standard)/10 Years (Optional)
Mechanical
Dimensions[WHD] (mm)	450540140
Weight (kg)	45
Environment
Storage Environment Temperature (℃)	-20 ~ +55
Discharge Temperature (℃)	-15 ~ +55
Charge Temperature (℃)	0 ~ +50
Relative Humidity	5% ~ 95%
Protection Level	IP65
Altitude (m)	≤2000
Cooling	Natural Cooling
Installation	[Indoor / Outdoor] Wall-mounted Installation
Certification
Others	UN 38.3

*Test Conditions – Temperature 25℃, at the beginning of life.
*Product specification may change without notice.
